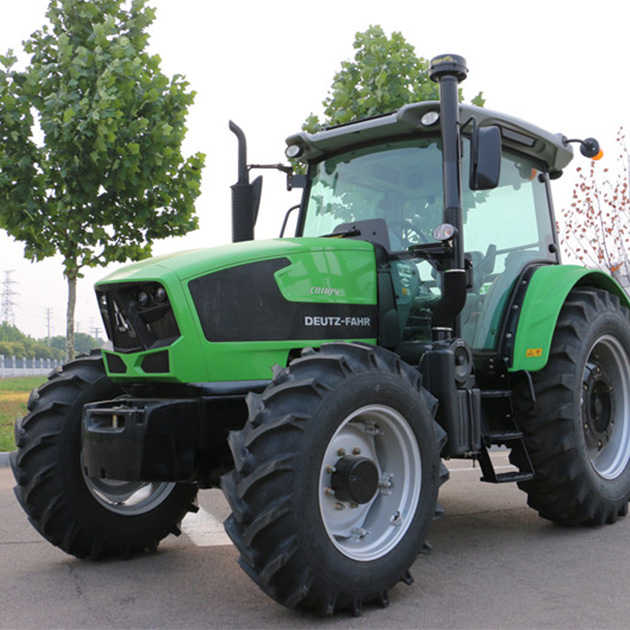

CD1104
deutz-fahr
| Electronically controlled supercharged and inter-cooled engine, large torque reserve; Transmission synchronizer shift, helical gear transmission, reliable and durable; Using high-end parts at home and abroad, the performance is stable and reliable; Deutz family hood, bionic appearance, a combination of strength and beauty. | |
| model | CD1104 |
| Dimensions (mm) | 4648 x2325x 2880 |
| Matching engine model | YC6B125-T22 |
| Matching engine rated power (kW) | 81 |
| Matching engine rated speed (r/min) | 2300 |
| Number of gears (forward/reverse) | 16F + 8R optional crawler gear |
| Engine and clutch coupling method | Direct |
| Steering system type | Full hydraulic steering |
| Gearbox shift mode | Synchronizer shift |
| Hydraulic suspension system type | Split |
| Suspension adjustment method | Force/position/load control |
| PTO shaft type | Detached |
| Power output shaft speed (r/min) | 540/1000 |
| Minimum ground clearance (mm) | 489 |
| Minimum use quality (kg) | 5700 |
| Counterweight-Maximum (kg) | 330/480 |
